5 Haas Lathes · Live Tooling · Y-Axis · Bar Feeders
Complex cylindrical parts in a single setup. Up to 15″ diameter, sub-spindle, and full ISO 9001:2015 documentation.
Cherry Creek Machine runs five Haas CNC lathes with a full range of capability — from small-diameter collet work to large-bore components up to 15 inches in diameter. Live tooling and Y-axis capability on select machines mean milling, drilling, cross-holes, flats, and keyways can all be completed in a single setup, eliminating secondary operations and reducing the chance of error.
Bar feeders run continuous production on collet-work, keeping cycle times low. A dual-spindle configuration handles sub-spindle operations. Every turned part is inspected and documented under our ISO 9001:2015 quality system before it ships.

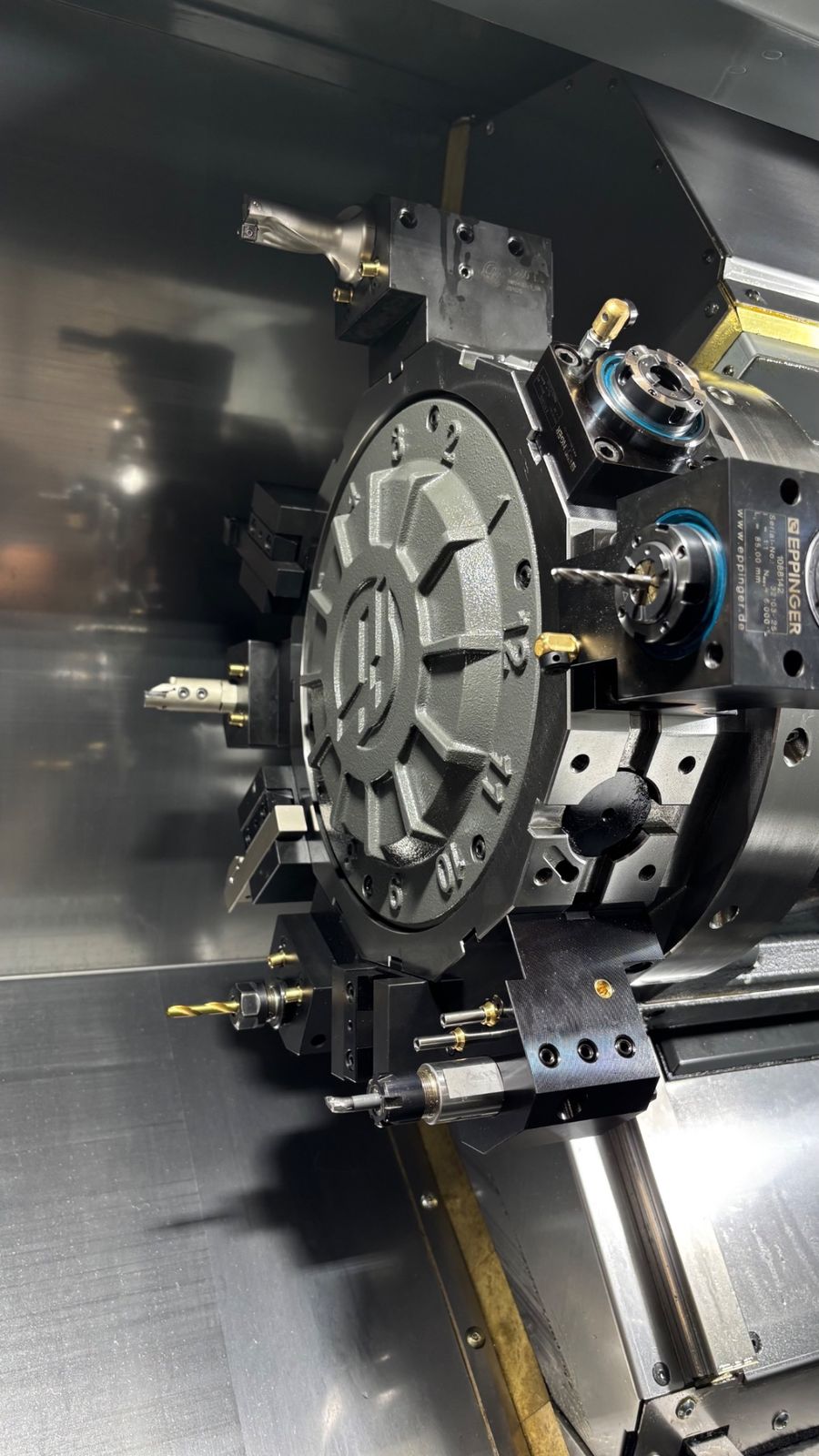

Y-axis live tooling means cross-holes, flats, keyways, and milled features are completed on the lathe in the same setup as the turned diameter. No secondary VMC operation. No re-fixturing. No additional setup charge. Fewer touchpoints means fewer opportunities for error.
Bar-fed lathes run collet-work continuously — consistent part-to-part repeatability without operator intervention at every cycle. For production quantities of bushings, shafts, fittings, and connector bodies, this is how you get competitive lead times and consistent results at the same time.
From small-diameter collet parts on the ST-15 to large-bore valve bodies and subs on the ST-30, we cover the full diameter range without sending work out. One purchase order, one quality system, one point of contact for your entire turned-part program.
Bushings, shafts, precision fittings, standoffs, actuator components, spacers
Valve stems, mandrels, subs, pup joints, tool body components, production fittings

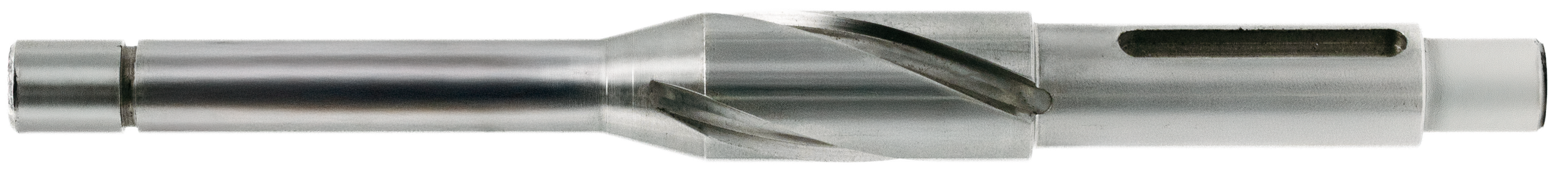

Shafts, sleeves, pump components, bearing journals, coupling halves, spindles
Connector bodies, standoffs, spacers, pins, ferrules, hitch components
Send drawings, models, or a description. PDF, DXF, STEP — we work with what you have. The more detail you provide, the tighter the quote.
You'll hear from us the same business day in most cases. If we need clarification, we'll call you directly — no back-and-forth through a portal.
Every job is tracked in Fulcrum ERP from order to shipment. Material is verified against mill certs before the first cut. You can ask where your job is at any time.

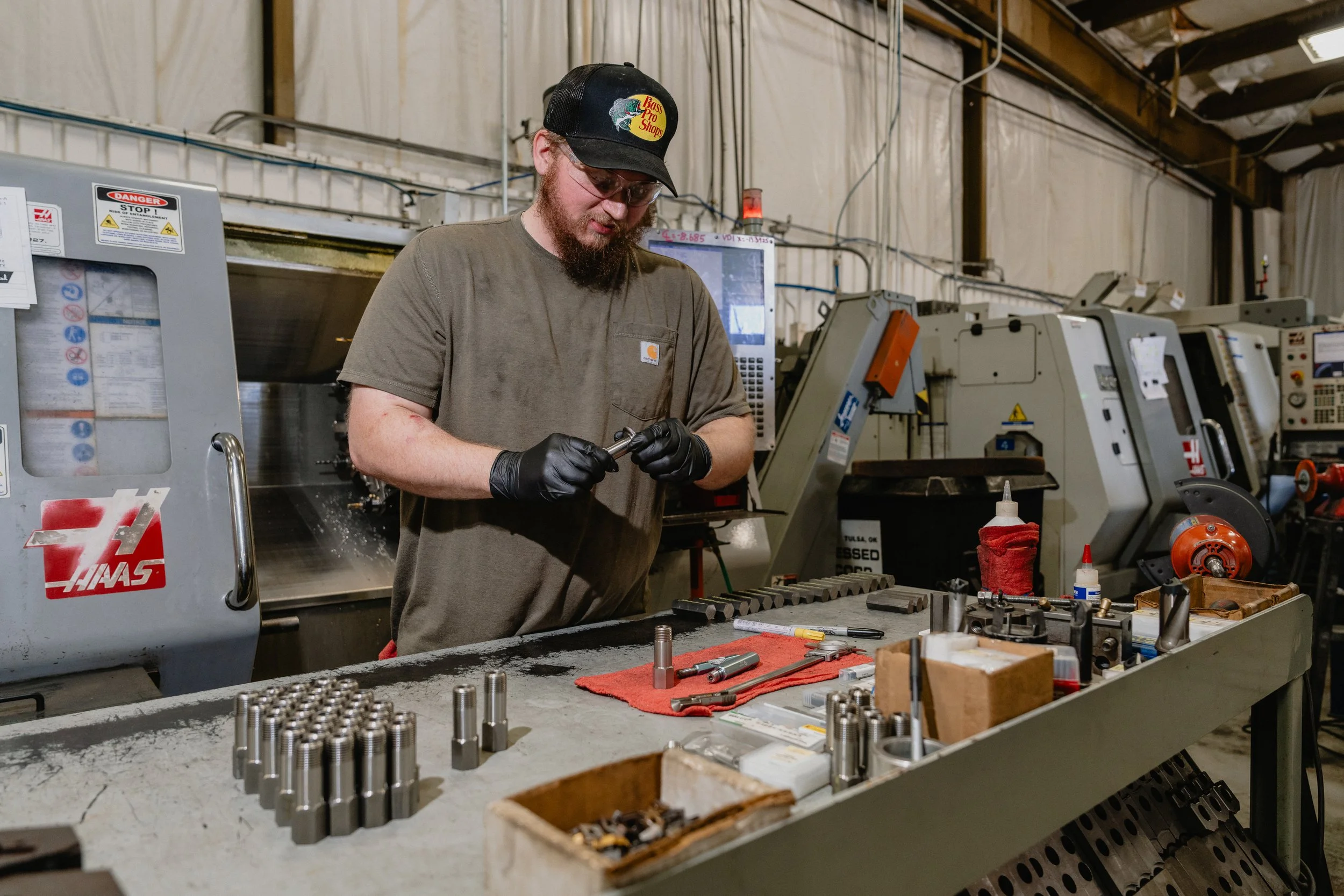

First-article inspection on new programs. In-process inspection at critical features. Final inspection with documented results — all under ISO 9001:2015.
Parts ship with inspection records and material certifications. No chasing paperwork. No surprises on lead time unless something genuinely unexpected comes up — and we'll tell you first.
| Machine | Swing × Length | Spindle | Features |
|---|---|---|---|

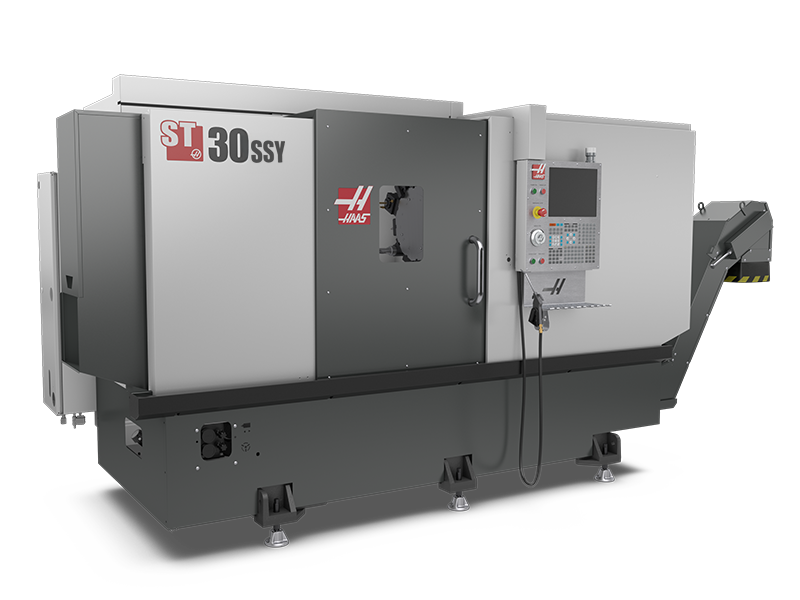

| Haas ST-30 | 15″ × 30″ | 3,400 RPM · 30 hp · A2-6 | Y-Axis Live Tooling Bar Feeder |
| Haas ST-20 | 10″ × 20″ | 4,000 RPM · 20 hp · A2-5 | Live Tooling Bar Feeder |
| Haas ST-15 (×2) | 8″ × 15″ | 6,000 RPM · 15 hp · A2-5 | Bar Feeder |
| Haas DS-30 | 15″ × 30″ | 3,400 RPM · 30 hp · A2-6 | Dual Spindle Live Tooling Sub-Spindle |
All turning centers run Haas control with full C-axis positioning. 4th-axis mill-turn available on live-tooling machines.
Share your drawings, material, quantity, and tolerances. You'll hear directly from the people running the machines — not a sales desk.
