OMAX 80X · 13′×7′ Table · Zero Heat-Affected Zone
The largest waterjet table in the Tulsa region. Cuts virtually any material without heat, stress, or metallurgical change.

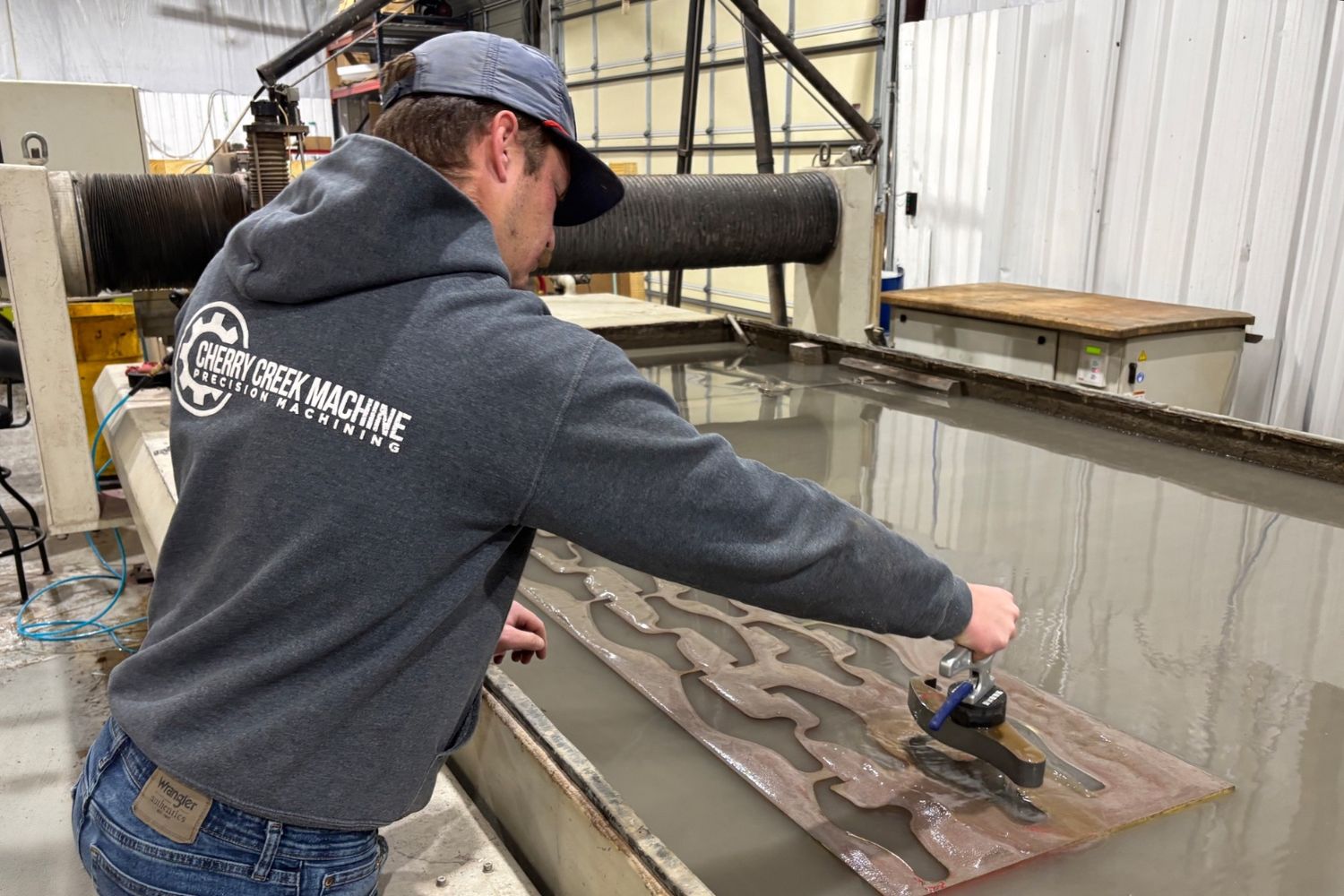

Cherry Creek Machine runs an OMAX 80X abrasive waterjet with a 13-foot by 7-foot cutting table — the largest waterjet envelope available at any machine shop in the Tulsa region. We cut virtually any material: steel, aluminum, titanium, hardened tool steel, carbon fiber, composites, rubber, foam, glass, stone, and ceramics.
The defining advantage of waterjet over laser and plasma is simple: zero heat-affected zone. The cut is made by a high-pressure stream of water and abrasive garnet — no heat generated, no metallurgical change to the material, no hardening at the edge, no warping. The part that comes off the table is the same material as the plate that went on it.
Laser and plasma cutting generate significant heat at the cut edge — enough to alter material hardness, introduce residual stress, cause micro-cracking, and discolor the surface. Waterjet generates zero heat. The material is exactly the same after cutting as before. For hardened steels, titanium, and aerospace alloys where edge integrity matters, waterjet is the right process.
Our 13-foot by 7-foot table handles plate work that simply won't fit on a standard waterjet. Large structural plates, multi-part nesting on a single sheet, long profiles — if your part is big, we can cut it without compromise. Most shops in the region run 5×10 or smaller. We built for larger work.
Hardened D2 tool steel. Aerospace titanium. Carbon fiber laminate. Thick rubber gasket material. Laminated glass. Ceramic tile. Waterjet cuts materials that are impossible or impractical for laser, plasma, or EDM. If you have an unusual material or a process you've been told can't be done locally, talk to us.
Aluminum, steel, stainless, titanium, copper, brass, Inconel, hardened tool steels, pre-hardened plate
Carbon fiber, fiberglass, G10/FR4, Kevlar laminates, honeycomb panel, phenolic
Delrin, UHMW, HDPE, neoprene, silicone, natural rubber, gasket material, foam
Granite, marble, tempered glass, ceramic tile, porcelain, technical ceramics
| Specification | Detail |
|---|---|
| Machine | OMAX 80X Abrasive Waterjet |
| Table Size | 13′ × 7′ (156″ × 84″) working envelope |
| Positional Tolerance | ±0.005″ (±0.127 mm) |
| Maximum Material Thickness | 4″ (100 mm) — thicker possible depending on material |
| Pump Pressure | Up to 60,000 PSI |
| CAM Software | OMAX Intelli-MAX — full 2D geometry, nesting, pierce optimization |
| Heat-Affected Zone | Zero — cold-cutting process |
| Abrasive | Garnet — consistent cut quality and edge finish |
Planning to add a second OMAX system as capacity demands grow. Contact us to discuss large-volume or ongoing waterjet programs.
